Spring Loaded Check Valve (Non-Slam / Silent Spring Check) — Selection Guide

Q: Is a spring-loaded check valve the same as a non-slam (silent) check valve?

Many spring-loaded check valves are used as non-slam or silent designs because the short stroke and spring assist allow rapid closure before significant reverse flow develops. However, actual non-slam performance depends on sizing, system transients, and installation orientation.

Q: Can a spring-loaded check valve be installed vertically?

Many spring-assisted check valves can be installed in horizontal or vertical piping, but opening behavior and stability vary by flow direction. Always confirm vertical up or vertical down installation during selection.

Table of Contents

60-Second Selection Summary (Read This First)

A spring-loaded check valve is a short-stroke, spring-assisted non-return valve designed to prevent reverse flow. In many piping systems—especially pump discharge lines—it is selected as a non-slam / silent spring check valve because it can close rapidly during deceleration, before meaningful reverse flow develops, reducing water hammer risk.

Use a spring-loaded (silent / non-slam) check valve when you need:

Fast closing to reduce slam / water hammer
Compact, short face-to-face valve body
Installation flexibility (horizontal / vertical with the right spring & verified orientation)

Selection boundaries that decide success or failure:

Installation orientation (horizontal / vertical up / vertical down)
Cracking pressure (minimum ΔP to open)
Allowable ΔP (pressure drop at operating flow)
Media cleanliness (solids / fibers / scaling risk)

✅ Need a fast selection + quote?Use the RFQ checklist below and paste your project details into the Quote form on the right.
Our engineering team will respond with sizing confirmation and quotation.

NTGD flanged spring loaded silent check valve for pump discharge line — Flanged spring-loaded silent check valve – typical configuration used in pump discharge and water hammer sensitive systems.

1) How Non-Slam / Silent Spring Check Valves Work

cross section of spring loaded check valve showing guided disc and spring mechanism — Cross-section view of a guided spring-loaded check valve showing disc, spring, shaft support, and sealing member.

The key point (avoid the common misconception)

A silent / non-slam check valve is not “slow closing.”
The goal is to avoid slam by closing before strong reverse flow forms. A spring-assisted short-stroke design helps the disc return quickly toward the seat during the deceleration phase, reducing the pressure surge that becomes water hammer.

Engineering clarification (useful for transient discussions):
Non-slam behavior is often described as the disc starting closure before/around near-zero flow during deceleration—so the system sees a smaller reverse-flow momentum and a lower pressure spike. (Actual outcome remains system-dependent.)

non slam check valve opening and closing sequence showing forward and reverse flow — Forward flow opening and rapid closure sequence in a non-slam spring check valve during flow deceleration.

Simple operating sequence

Forward flow builds enough ΔP to overcome spring force → valve opens
Flow decelerates (pump trip / transient) → spring drives disc toward seat
Valve closes rapidly → reverse flow is minimized → slam risk reduced

Practical takeaway: non-slam performance is system-dependent (flow inertia, installation orientation, spring selection, and sizing). A “silent valve” label does not override sizing errors.

basic ball type spring check valve operating principle diagram — Basic operating principle of a ball-type spring check valve – forward flow overcomes spring force to open.

2) Selection Guide & Boundaries (Engineering Table)

Use this table as the decision boundary checklist before choosing a spring-loaded / silent check valve:

Selection Boundary	What It Controls	Practical Selection Notes
Installation orientation (Horizontal / Vertical Up / Vertical Down)	Opening behavior & stability	Confirm orientation in RFQ. Vertical up/down can change required opening force and stability. Vertical down especially must be verified with the correct spring/guide design.
Cracking pressure	Minimum ΔP to open	Too high → valve may not open at low flow. Too low → chatter under unstable flow. Typical industry reference: cracking pressure is commonly specified in a low range (often ~0.5–5 psi / 0.03–0.34 bar depending on design); verify by your minimum ΔP and orientation.
Allowable ΔP	Pump energy loss & whether valve reaches full open	Small sizes/high velocity can create higher ΔP. Do not size only by pipe DN—size by operating flow envelope. If the valve never reaches stable full-open, chatter and seat wear become likely. Risk note: sustained high-ΔP operation can accelerate spring fatigue and seat erosion—verify with engineering for high-velocity services.
Media cleanliness (solids/fibers/scale)	Sticking, guide wear, seat damage	Dirty media can foul guiding surfaces and spring cavity. Consider upstream strainer/filtration or alternate design (e.g., larger passage / different check type) when solids or fibrous content exists.
Pulsation / cycling frequency	Spring fatigue, disc chatter, premature wear	Strong pulsation (reciprocating pump/compressor) can cause chatter and fatigue. Verify suitability or choose a damped/special design. If flow oscillates near cracking threshold, instability is likely.

Not sure which cracking pressure or orientation fits your line? Send your service conditions for a fast selection + quote.

Typical failure modes (and how selection prevents them)

These are the patterns we see most often when spring checks “fail early”:

Chatter (disc instability): usually from oversizing or operating near cracking threshold → repeated impacts accelerate seat wear.
Prevent: size by min/normal/max flow; ensure minimum operating ΔP is comfortably above cracking pressure.
Sticking / slow return: solids/scale foul guiding surfaces or spring cavity.
Prevent: confirm cleanliness; add upstream filtration; select a structure tolerant of solids where needed.
Seat erosion / leakage spiral: high velocity + solids + frequent transients → progressive damage.
Prevent: verify velocity/ΔP; consider hard-facing/metal seat options; improve cleanliness strategy.

3) Spring vs Swing vs Lift Check Valve (Comparison + Internal Links)

If you’re deciding between check valve types, use this matrix—then click through to the dedicated pages for deeper selection guidance:

Decision Factor	Spring-Loaded / Silent (this page)	Swing Check Valve	Lift Check Valve
Water hammer / slam risk	Low (short stroke + spring assist)	Higher risk (longer travel; more transient-sensitive)	Medium (more sensitive to cleanliness and stability)
Pressure drop (ΔP)	Typically medium (depends on sizing)	Often low when fully open	Medium
Installation flexibility	Many designs support horizontal + vertical (verify)	Often best in horizontal piping	More restrictive; verify orientation
Dirty media tolerance	Medium (guiding areas can foul)	Often better for solids than guided designs	Typically more sensitive to fouling
Best-fit scenarios	Pump discharge, water hammer sensitive systems, compact piping	Large lines, low ΔP priority, stable conditions	Clean media, specific pressure/space constraints

For large diameter, low-ΔP lines, consider a swing check valve: https://ntgdvalve.com/swing-check-valve/
For clean media with stricter installation requirements, see lift check valve selection: https://ntgdvalve.com/lift-check-valve/
For compact flange-to-flange installs, see wafer check valve for tight piping: https://ntgdvalve.com/wafer-check-valve/
For water hammer control, explore silent check valve options: https://ntgdvalve.com/silent-check-valve/
Full range overview: industrial check valve category: https://ntgdvalve.com/check-valve/

4) Types of Spring-Loaded Check Valves & Best-Fit Applications

Below is the type × boundary × best use view (not encyclopedia definitions).

4.1 In-line spring-loaded check valve

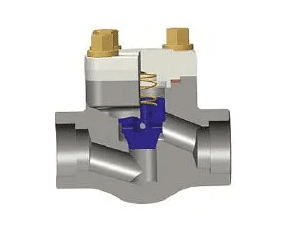

Y type spring loaded check valve cross section for inclined installation — Y-type spring-loaded check valve – often selected for inclined or specific piping layouts.

Solves: compact installation, fast closure
Best-fit: general industrial lines, pump discharge where space is limited
Avoid / verify: very dirty media (fouling risk), strong pulsation services

4.2 Wafer spring check / wafer check configurations

Solves: short face-to-face, low weight, cost-efficient installs
Best-fit: limited space, retrofit between flanges
Related page: https://ntgdvalve.com/wafer-check-valve/
Also relevant: https://ntgdvalve.com/wafer-type-check-valve/

compact threaded spring check valve for small diameter piping — Threaded compact spring check valve – typically used in small diameter or utility systems.

4.3 Silent / non-slam spring check valves (system protection focus)

Solves: reduce slam and water hammer risk in transients
Best-fit: pump trip scenarios, HVAC/water systems, sensitive piping

Silent Check Valve (water hammer control): https://ntgdvalve.com/silent-check-valve/
Non Slam Check Valve (non-slam concept): https://ntgdvalve.com/non-slam-check-valve/
Nozzle Check Valve (often used in non-slam applications): https://ntgdvalve.com/nozzle-check-valve/
Spring Check Valve (includes axial/silent concept): https://ntgdvalve.com/spring-check-valve/

4.4 Dual plate (wafer) check valves (common wafer selection)

Not a spring-loaded guided-disc design, but common in compact utility installs:

Dual Plate Check Valve: https://ntgdvalve.com/dual-plate-check-valve/
Dual Plate Wafer Check Valve: https://ntgdvalve.com/dual-plate-wafer-check-valve/

Important: different designs solve different failure modes. Use the selection boundary table to match the valve to your transient and media reality.

5) Materials & Component Notes (What Actually Matters)

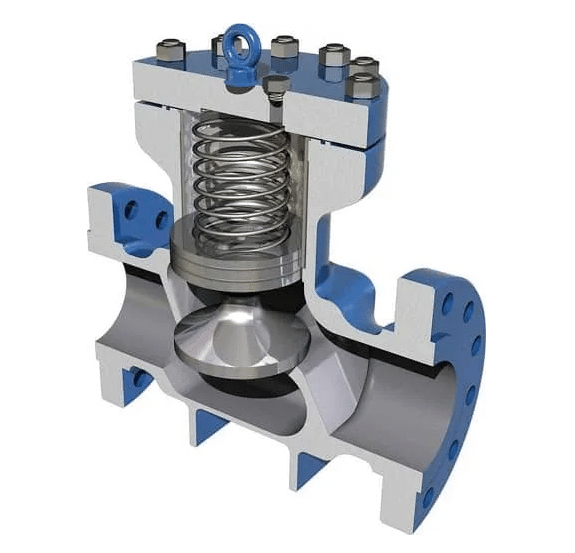

flanged-heavy-duty-spring-loaded-check-valve-section.jpg — Heavy-duty flanged spring-loaded check valve for industrial high-pressure service.

You don’t win reliability by listing every component. You win by matching materials to media + temperature + cycling.

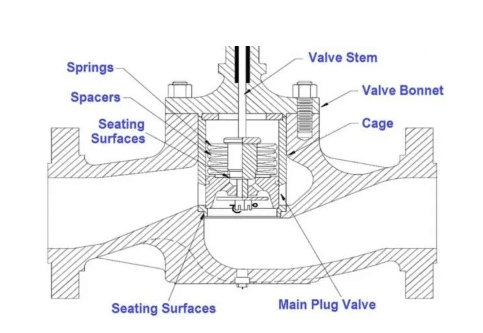

Critical parts for spring-loaded / silent performance

Spring material: affects cracking pressure stability and fatigue under cycling
Guiding surfaces: critical for anti-stick behavior in dirty media
Seat / sealing interface: determines leakage stability after repeated closure events

If you are handling corrosive media or sour service: specify materials and standards in RFQ (e.g., stainless grades, NACE requirements if applicable).

6) Common Problems & Field Fixes (Engineering-Style Troubleshooting)

Symptom A: Valve does not open (no flow)

Likely causes (check in this order):

Installed against flow arrow / wrong orientation
Cracking pressure too high for minimum operating ΔP
Blockage or fouling at guide/seat
System flow too low to reach stable open position

Fix: confirm orientation, verify minimum ΔP at operating flow, clean internal parts, select lower cracking pressure spring where needed.

Symptom B: Chatter / noise / unstable operation

Typical causes:

Flow fluctuates near cracking threshold
Valve oversized or never reaches stable full open
Pulsation from pump/compressor

Fix: size by flow envelope, verify ΔP, consider different design for strong pulsation, add damping measures upstream if needed.

Symptom C: Leakage when closed

Typical causes:

Seat damage from solids
Disc not seating due to fouling
Incorrect material selection for temperature/chemistry

Fix: verify cleanliness strategy (strainer/filtration), choose appropriate seat/sealing materials, inspect seating surfaces.

7) Standards & Compliance (Only list what you can support)

Typical references depending on project requirements:

Design/manufacturing per applicable valve standards (e.g., ASME B16.34 when specified by project)
End connections per piping flange/thread standards
Testing per project leakage/hydro requirements

Important: Only include specific API/MSS standards on this page if NTGD can supply supporting documentation/certification for the requested project.

8) Request a Quote — RFQ Checklist (High-Quality Inquiries)

To select the correct spring-loaded / silent check valve and avoid field failures, please provide:

Required (for a fast quote)

Line size (NPS/DN)
Pressure class / PN
Media + operating temperature
Normal operating flow (or flow range if available)
Installation orientation (horizontal / vertical up / vertical down)

Optional (for more precise selection)

Operating pressure and allowable ΔP
Required cracking pressure (if specified)
End connection (flanged / wafer / threaded / BW)
Material requirements (body/disc/spring; NACE if required)
Testing requirement (hydro/seat/leakage class)
Space limit / face-to-face constraints
Special notes (solids, vibration, cycling frequency)

Copy the template above and paste it into the message box on the right for fast engineering review.

Engineering support: selection + drawings available upon request
Trust note: selection will be reviewed by NTGD engineering based on the service conditions you provide.

inline spring loaded check valve 3D cutaway showing short stroke spring assembly — 3D cutaway of an in-line spring-loaded check valve showing short stroke spring assembly.

9) FAQ (Selection-Focused)

Q1: Is a spring-loaded check valve the same as a non-slam (silent) check valve?
Many spring-loaded designs are used as silent / non-slam check valves due to short stroke and spring assistance, but non-slam performance still depends on sizing, orientation, and system transients.

Q2: Can a spring-loaded check valve be installed vertically?
Often yes, but opening stability and cracking behavior can change between horizontal and vertical (upward/downward) flow. Confirm orientation during selection.

Q3: How do I choose cracking pressure?
Cracking pressure must be low enough to open at your minimum operating ΔP, but not so low that the valve chatters under unstable flow. Provide flow range, orientation, and allowable ΔP for selection.

Q4: What’s the difference between spring-loaded, swing, and lift check valves?
Spring-loaded valves close faster to reduce slam risk, but can add ΔP. Swing check valves can have lower ΔP when fully open but may be more slam-prone. Lift check valves often require cleaner media and stricter installation conditions.

Q5: When should I avoid a spring-loaded check valve?
Avoid or verify carefully in strong pulsation services, heavily contaminated media that can foul guiding surfaces, or systems requiring near-zero cracking pressure for gravity return.
